Millennium Plus 70 door

Description:

• Coplanar door entry system with straight lines and frame depth of 70 mm
• It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations
• Resistance to repeated openings and closings (EN 1191:2000) : 1.000.000 cycles
• Maximum glazing: 54 mm
• Possibility of hidden hinges

Test Centre:

• Transmittance Uw from 0,9 (W/m²K)
  Please consult typology, dimensions and glazing
• Maximum acoustic insulation Rw=38 dB
• Air permeability (EN 12207:2000) CLASS 4
• Water tightness (EN 12208:2000) CLASS 6A
• Wind resistance (EN 12210:2000) CLASS C4
  Door test reference 1,20 x 2,30 m. 1 sash
• Resistance to mild impact (EN 13049:2003) CLASS 5 (max)
  Test on door reference 1,80 x 2,20 m. 2 sashes. Laminated glass 3+3
• Resistance to repeated openings and closings (EN 1191:2000) 1.000.000 cycles
  Test on door reference 0,935 x 2,10 m. 1 sash

Technical Data:

• Maximum glazing thickness 54 mm


• Opening possibilities
  Open In: Side hung  1 or 2 sashes
  Open Out: Side hung 1 or 2 sashes
  Automatic opening: Internal and external hinged single sash

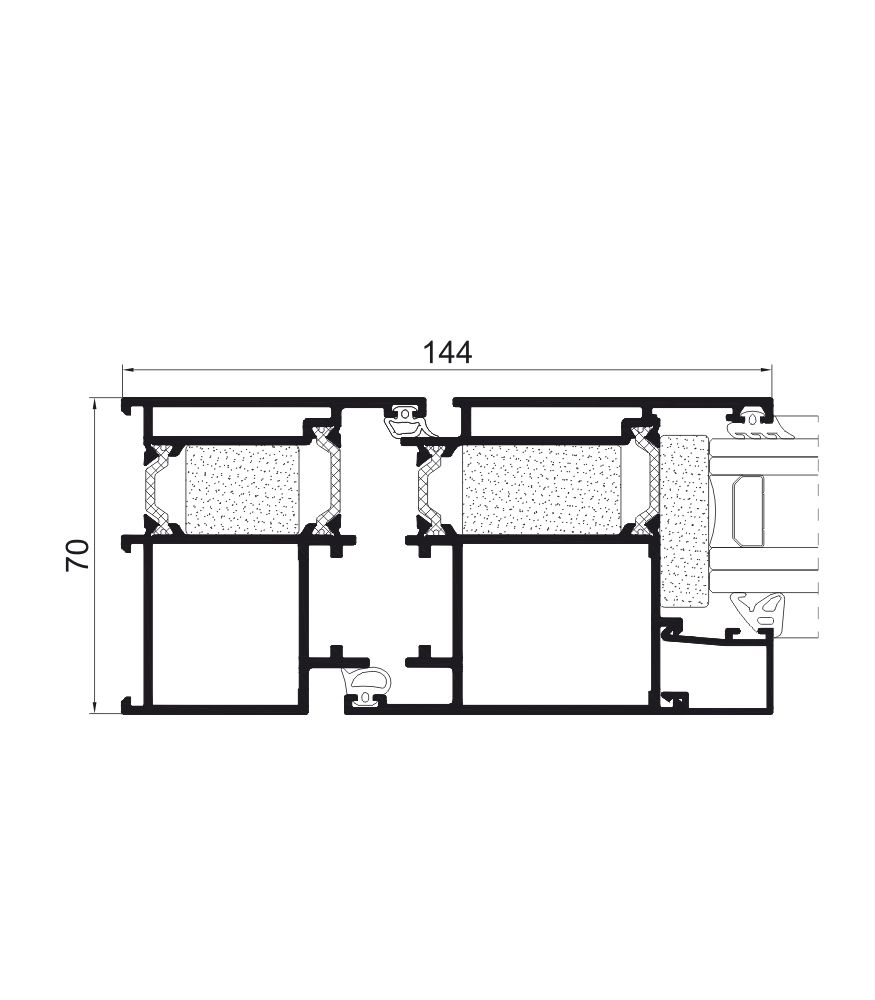

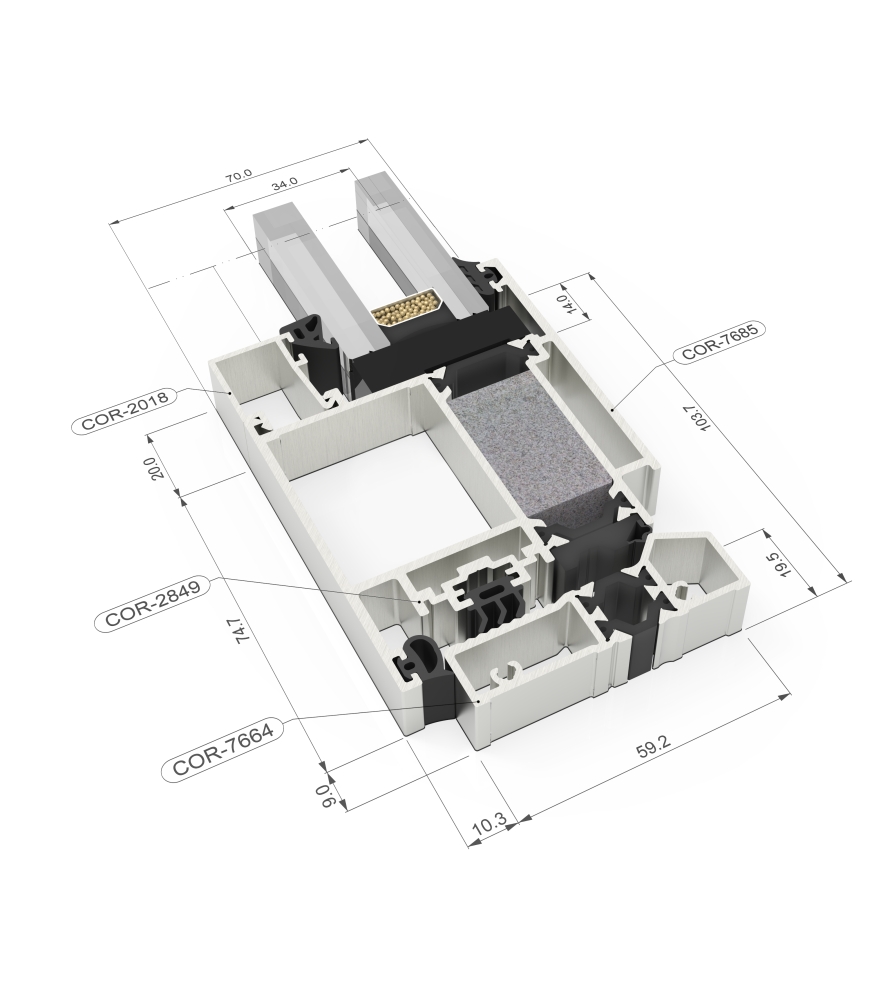

• Sections Frame – 70 mm / Sash – 70 mm


• Profile thickness Door 2,0 mm


• Polyamide strip length 24 mm


• Maximum dimensions/sash
  Width  (L) = 1.800 mm
  Height (H) = 3.000 mm
  Door

  Width (L) = 1.500 mm
  Height (H) = 2.700 mm
  Hidden hinges door


• Maximum weight/sash 220 Kg
  120 Kg Hidden hinges
  Please consult regarding maximum weight and dimensions according to types


• Finished
  Possibility of  bicolor systems
  Color powder coating (RAL, mottled and rough)
  Wood effect powder coating
  Anti-bacterial powder coating
  Anodized
